Cheng Guang laser

Portable fiber laser marking machine

Sample picture

Sample picture

Products parameters

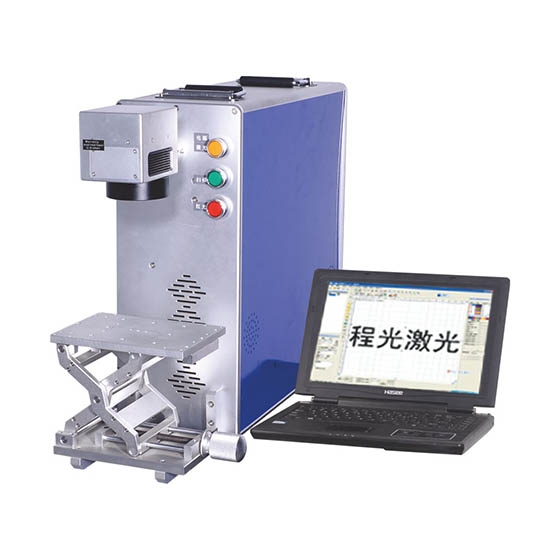

Portable fiber laser marking machine
Laser marking machines use laser beams to mark permanent surfaces on a variety of different materials. The effect of marking is to expose the deep substance through the evaporation of the surface material so as to carve exquisite patterns, trademarks and characters.
Comparison of different labeling methods
Compared with the ink jet marking method, laser marking engraving has the advantages of wide range of applications, many kinds of materials (metals, glass, ceramics, plastics, leather and so on) can be permanently labeled with high quality. No force on the surface of the workpiece, no mechanical deformation, the surface of the material does not corrode.
Product features:
The fiber laser marking machine has small volume and integrated design, low power consumption, long service life, high efficiency, free maintenance and no need for consumables. It greatly reduces the cost for users.
Scope of application:
Applicable materials include: ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and other metal), rare metals and alloys (gold, silver, titanium), metal oxide (metal oxide can), special surface treatment (phosphate, aluminum anodizing, electroplating, surface material (ABS) shell appliances, commodity), ink (keypad, printing), epoxy resin (electronic components packaging, insulation layer).

Used in electronic components, integrated circuit (IC), electrical appliances, mobile phone communications, hardware, tool accessories, precision instruments, watches, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipe, medical equipment and other industries


laser power

10W/20W/30W/50W

Laser wavelength

1064nm

Fiber length

2M/3M

Beam quality

m?1.4-2.0（＜2）

Divergence angle

0.3mrad

Minimum line width

0.01mm

Laser pulse energy

0.8-1Mj@25KHZ

Laser repetition frequency

20-80KHZ

Repeatability positioning accuracy

±0.003mm

Marking depth

0.01mm-0.7mm

Marking range

80x80mm/110x110mm/150x150mm

Marking speed

≤7000mm/s

Power

600W

Cooling method

風(fēng)冷

working voltage

220V
